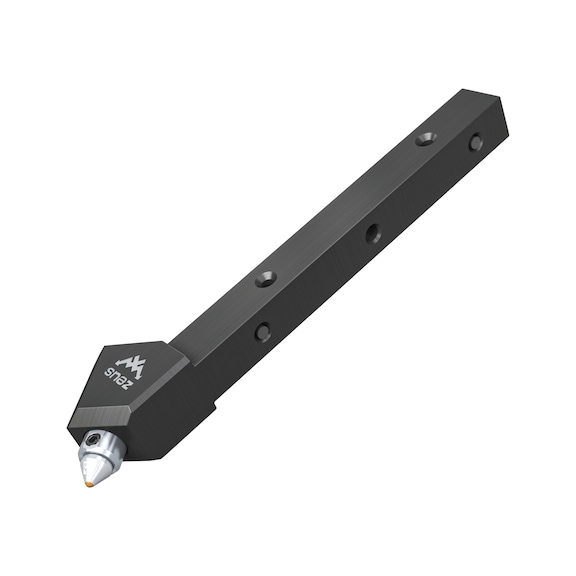

ZEUS
Brand: ZEUS
Art.-no. 17800000
Manufacturer article no. 31003956
Application
For achieving the finest surface finishes on turned parts
Execution
- Fixed tool head - centre height aligned with the centre of the shank cross-section
Advantage
- Tool suitable for universal use
- Compact design for Swiss-type lathes
- Long diamond service life thanks to eight-position indexing
- Highest surface finishes achievable
Notes
Vc= 200m/min
f= 0.2 mm/rev
Workpiece stock allowance: 0.01mm = Rz10 0.02mm = Rz20
Use cutting fluid
Delivery
Includes 12x12 and 16x16 shank adapters
 | |
Brand | ZEUS |
Manufacturer Part Number | 31003956 |
Minimum order quantity | 1 |

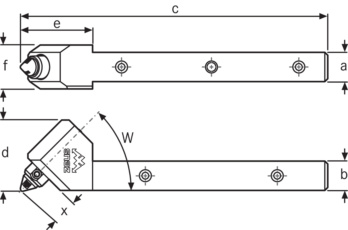

Shank width (b) | 10 mm |
Shaft height (a) | 10 mm |
Harmonized System Code | 84661031 |
Gross Weight | 0.629 kg |
