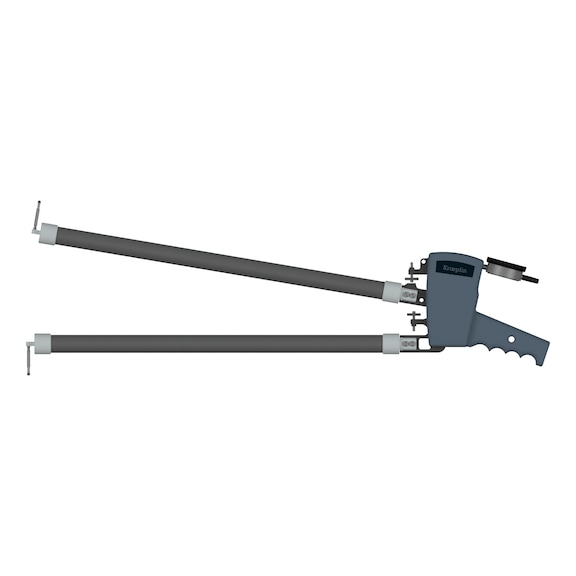

KROEPLIN - Mechanical measuring gauge for internal measurements of bores, recesses and internal grooves

KROEPLIN - Mechanical measuring gauge for internal measurements of bores, recesses and internal grooves - 1

KROEPLIN - Mechanical measuring gauge for internal measurements of bores, recesses and internal grooves - 2

KROEPLIN - Mechanical measuring gauge for internal measurements of bores, recesses and internal grooves - 3

KROEPLIN

Name: KROEPLIN
Brand: KROEPLIN
SKU: 33261595

Brand: KROEPLIN

Art.-no. 33261595

Manufacturer article no. H12150

All versions

Similar products

Individual prices for customers after login

KROEPLIN

Art.-no. 33261595

Quantity

Price per

Piece

You need more information or have not found your desired product?

Application

For measuring bores, recesses and internal grooves.

Execution

Adjustable tolerance marks
Easy adjustment with rotating housing
One fixed and one movable measuring arm

Advantage

Measured result can be read directly
Manufacturer's warranty extension: If registered on the manufacturer's website within three months of the date of purchase, the manufacturer's warranty is extended by one year. Instructions for this are included in the scope of delivery.

Delivery

With traceable test certificate in box

Product information

HAHN+KOLB Catalogue

Certificates/ Documents

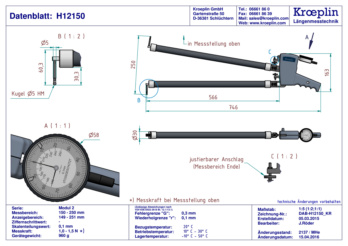

Brand	KROEPLIN
Manufacturer Part Number	H12150
Minimum order quantity	1
Design	For internal measurement
Display	Analogue
Type	H12150
Min./max. length measuring range (Meb)	150-250 mm
Scale value	0.1 mm
Measuring arrangement	19, Ball
Measuring depth (L)	566 mm
Measuring contact length movable (Hb)	30 mm
Measuring contact length fixed (Hf)	30 mm
Ball diameter (D)	5 mm
IP protection class	IP 65
Data transmission type	No
Gross Weight	6.000 kg

Additional accessory:

Product

Description

Quantity

Price per

Price

MELUTEC Labelling/lettering/engraving up to 16 chars to be specified in shopping basket

Labelling/lettering/engraving up to 16 characters (more than 16 characters available upon request)

MELUTEC

Art.-no. 30000887

x 1 Piece

MELUTEC Factory calibration for internal measuring gauge 200-500 mm

Calibration group Q measuring gauges

MELUTEC

Art.-no. 30004083

x 1 Piece
