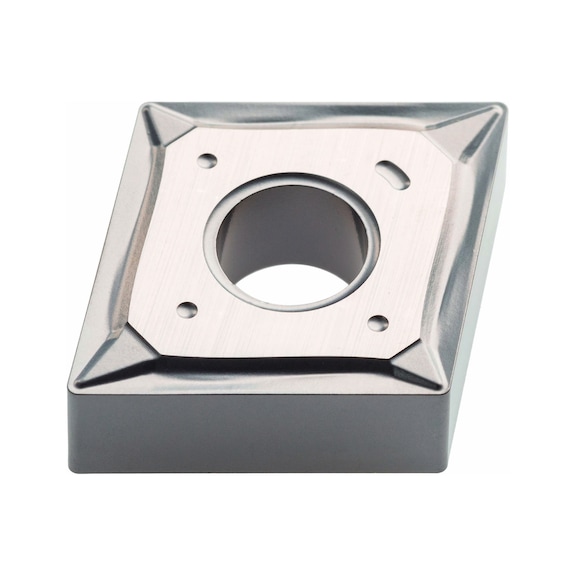

ATORN Indexable insert CNMG 120404-FFP ATU10T

Brand

ATORN

EAN

4050293727975

Manufacturer Part Number

12370642

Minimum order quantity

10

Shape of indexable insert ISO

C

Clearance angle of indexable insert ISO

N

Tolerance class of indexable insert ISO

M

Indexable insert type ISO

G

Size of indexable insert ISO

12

Thickness of indexable insert ISO

04

Corner radius of indexable insert ISO

04

Coating

CVD

Machining conditions for indexable insert

Good

Carbide type area ISO

P

Carbide type ISO

P10

Carbide type

ATU10T

ISO-Code Rotating

CNMG 120404

min./max. ap

0,05-2 mm

Material to be processed

Steel, Stainless steel, Cast metal

f min./max.

0,05-0,2 mm/r

Materials group

P (primary application), M (secondary application), K (secondary application)

f min.

0.05 mm/r

max. f

0.2 mm/r

max. ap

2 mm

min. ap

0.05 mm

Supply type

Smoothing

Chip breaker code

FFP

Min./max. Vc in steel

230-270 m/min

Min./max. Vc in cast iron

200-300 m/min

Min./max. Vc in stainless steel

170-240 m/min

Harmonized System Code

82090020

Number of pieces per packet

10 PCS

Gross Weight

0.004 kg
