ATORN Single vee block with clamp 5-30 mm - Single prism ATORN Single vee block with clamp 5-30 mm - Single prism
ATORN Single vee block with clamp 5-30 mm - Single prism - 1
ATORN Single vee block with clamp 5-30 mm - Single prism - 2
ATORN

ATORN Single vee block with clamp 5-30 mm

Brand: ATORN

Material: Hardened steel

Art.-no. 35186031

Manufacturer article no. 30054307

EAN 4050293568479

All versions
Individual prices for customers after login
ATORN Single vee block with clamp 5-30 mm

Art.-no. 35186031

Quantity
Price per
Piece

You need more information or have not found your desired product?

Application

For checking, marking off and aligning cylindrical parts.

Execution

  • With clamping bracket
  • Vee block faces and base machined level and parallel
  • Finely ground
  • Size 5-30 mm made from 40Cr, sizes 5-50 and 7-70 mm made of 45, each hardened to approx. 54-58 HRC
Product information

HAHN+KOLB Catalogue

Certificates/ Documents

 |

 |

Brand

ATORN

EAN

4050293568479

Manufacturer Part Number

30054307

Minimum order quantity

1

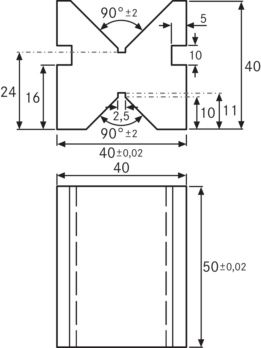

Length x width x height

50 x 40 x 40 mm

Flatness tolerance

0.004 mm

Min./max. workpiece diameter

5-30 mm

Angle

90 Degree

Material

Hardened steel

Gross Weight

0.600 kg

Art.-no.
Cust. Mat. No.

Hazardous Material

Product information

HAHN+KOLB Catalogue

CAD data (available after login)

Certificates/ Documents

 |

 |

Technical information
