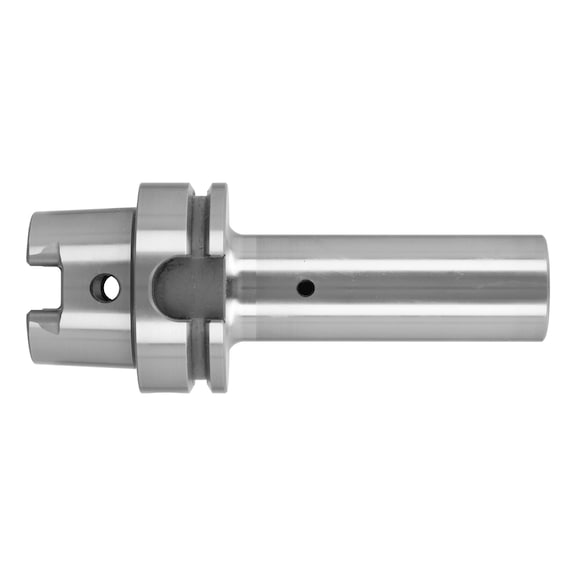

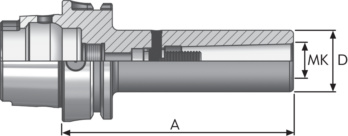

ATORN Spacer sleeve HSK100 (ISO 12164) MK5 + clamping thread A=200 mm

Name: ATORN Spacer sleeve HSK100 (ISO 12164) MK5 + clamping thread A=200 mm
Brand: ATORN
SKU: 23163017

Brand: ATORN

All versions

Similar products

Individual prices for customers after login

ATORN Spacer sleeve HSK100 (ISO 12164) MK5 + clamping thread A=200 mm

Art.-no. 23163017

Quantity

Price per

Piece

You need more information or have not found your desired product?

Application

For holding tools with Morse taper shank in accordance with DIN 228 A with clamping thread.

Execution

Alloyed case-hardening steel, core tensile strength at least 950 N/mm²
Case-hardened HRc 60 ± 2 (HV 700 ± 50), hardness depth 0.8 mm ± 0.2 mm, black oxide finish
Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
Max. concentricity < 0.005 mm

Notes

The previous standard DIN 69871 was superseded by ISO 12164.

Delivery

1x HSK63 or HSK100 spacer sleeve (ISO 12164)

Product information

HAHN+KOLB Catalogue

CAD data (available after login)

Certificates/ Documents


Brand	ATORN
EAN	4050293712872
Manufacturer Part Number	22660872
Minimum order quantity	1
Tool holding device	HSK 100
Tool holding device type	Adapter sleeve with clamping thread (DIN 6364)
Form	A
Taper type (MK)	MK5
Projecting length (A)	200 mm
Diameter 2 (D)	63 mm
Collar diameter	100 mm
Coolant supply	Internal axial
Balancing quality	G 2.5 at 25,000 rpm
Harmonized System Code	84661020
Gross Weight	4.700 kg
