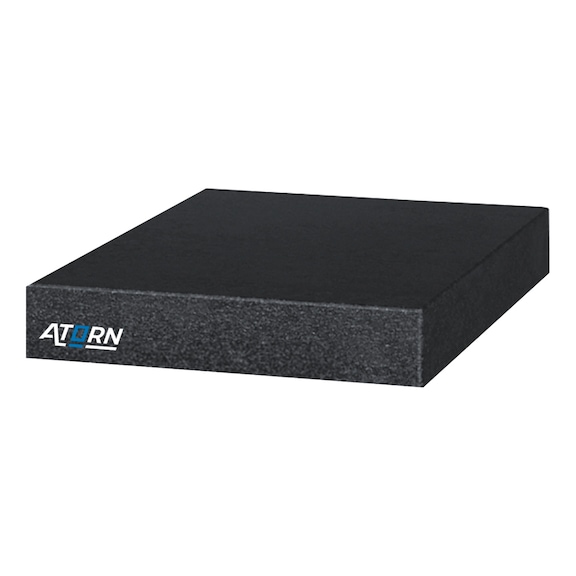

ATORN Surface plate 400 mm x 400 mm x 50 mm DIN 876 accuracy grade 0

Name: ATORN Surface plate 400 mm x 400 mm x 50 mm DIN 876 accuracy grade 0
Brand: ATORN
SKU: 35370202

Brand: ATORN

Calibration Group: Hartgesteinsplatte

Art.-no. 35370202

Manufacturer article no. 33200018

All versions

Similar products

Individual prices for customers after login

ATORN Surface plate 400 mm x 400 mm x 50 mm DIN 876 accuracy grade 0

Art.-no. 35370202

Quantity

Price per

Piece

You need more information or have not found your desired product?

Application

For a wide range of measuring tasks requiring high base accuracy.

Execution

DIN 876-0: Surface especially finely ground and lapped
Made from untreated, selected Nero Impala hard rock
Not dyed, waxed or oiled
Flawless, homogeneous structure
Finely finished outer sides
Edges chamfered for protection against damage
Including factory calibration certificate, measurement results are traceable to national standards
DAkkS calibration certificate available on request

Advantage

selected Nero Impala South African hard rock with outstanding properties
Naturally aged for maximum dimensional stability

Delivery

Including traceable factory calibration certificate

Product information

HAHN+KOLB Catalogue

Certificates/ Documents

Brand	ATORN
Calibration Group	Hartgesteinsplatte
Manufacturer Part Number	33200018
Minimum order quantity	1
Accuracy class	0
Length x width x thickness	400 x 400 x 50 mm
Flatness according to DIN 876 accuracy level 0	4 µm
Gross Weight	43.000 kg

Additional accessory:

Product

Description

Quantity

Price per

Price

ATORN Table supports for granite stone plate 400x400x50mm

Table support set for surface plates

ATORN

Art.-no. 35370265

x 1 Set
