ANKE

Box workbench 1500 3-part housing model 259 ZBP 50 mm 7035/5010 850x1500x700

Brand: ANKE

Description Short: Box workbench 1500 3-part housing model 259 ZBP 50 mm 7035/5010 850x1500x700

Art.-no. 95224111

Manufacturer article no. 999.024.0297

EAN 4014641237233

Individual prices for customers after login
Box workbench 1500 3-part housing model 259 ZBP 50 mm 7035/5010 850x1500x700

Art.-no. 95224111

Quantity
Price per
Piece

You need more information or have not found your desired product?

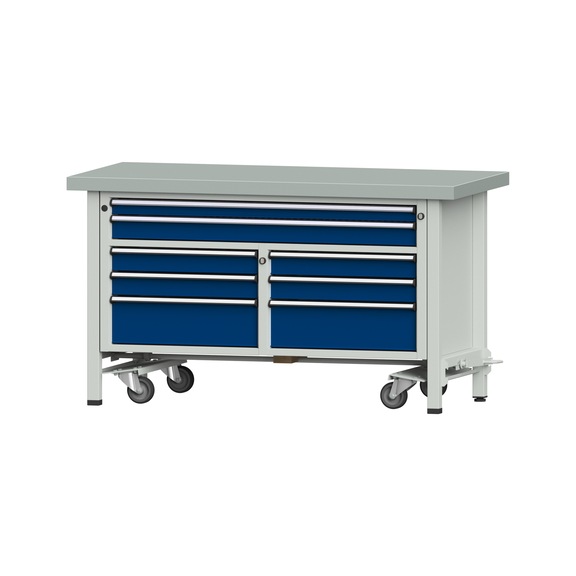

ANKE box workbench 1500 - 3-part housing, model 259, ZBP 50 mm, RAL 7035/RAL 5010. With 1.5 mm thick galvanised sheet metal covering (DX51D+Z). The cladding is flanged around the edges on all sides. Support plate made of wood-based material. Workbench housing consisting of 1 block, divided into 3 sections and equipped as follows: Top block: SK 60, SK 90 Left block: SK 90, SK 90, SK 180 Block on the right: SK 90, SK 90, SK 180 ANKE front V Drawers with 100% full extension and individual pull-out stop Internal drawer dimensions at the top: 1110 x 540 mm (WxD) Internal drawer dimensions on the left + right: 500 x 540 mm (WxD) Abrasion-resistant, smooth-running plastic castors, positively guided on both sides Drawer load capacity 100 kg Drawers with perforated base and slotted walls suitable for individual drawer organisation Drawers with label strip and transparent cover strip Central locking with 2 keys Base frame made of robust VK steel construction 45/45/2 mm, with lowerable running gear The running gear is moved by turning an eccentric lever 180 degrees. Roller diameter: 100 mm Load capacity per roller 150 kg, total 450 kg including the weight of the workbench; stationary 1500 kg. All feet with abrasion-resistant ANKE special foot plugs, one of which is for level adjustment (height-adjustable 20 mm) - Delivered fully assembled - Weight per piece (with packaging, without Euro pallet) approx. 195 kg

Product information

Certificates/ Documents

 |

 |

Brand

ANKE

EAN

4014641237233

Manufacturer Part Number

999.024.0297

Description Short

Box workbench 1500 3-part housing model 259 ZBP 50 mm 7035/5010 850x1500x700

Width

1500 mm

Material of worktop

Zinc sheet covering

Colour of front

Gentian blue RAL 5010

Cabinet colour

Light grey RAL 7035

Depth

700 mm

Gross Weight

195.000 kg

Art.-no.
Cust. Mat. No.

Hazardous Material

Product information
CAD data (available after login)

Certificates/ Documents

 |

 |

Technical information
