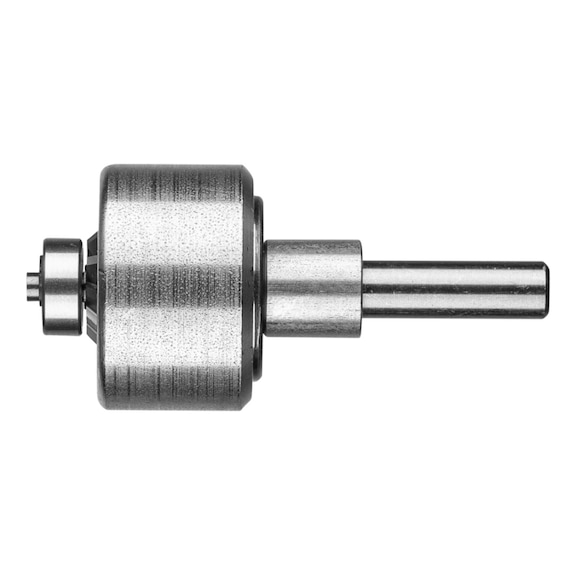

PFERD carbide burr EDGE taper countersink KSJ 45 degrees diameter 16x03 mm, 6 mm

Name: PFERD carbide burr EDGE taper countersink KSJ 45 degrees diameter 16x03 mm, 6 mm
Brand: PFERD
SKU: 95123586

Brand: PFERD

Description Short: PFERD carbide burr EDGE taper countersink KSJ 45 degrees diameter 16x03 mm, 6 mm

Art.-no. 95123586

Manufacturer article no. 21115467

EAN 4007220097984

All versions

Similar products

Individual prices for customers after login

PFERD carbide burr EDGE taper countersink KSJ 45 degrees diameter 16x03 mm, 6 mm

Art.-no. 95123586

Quantity

Price per

Piece

You need more information or have not found your desired product?

Carbide burr EDGE taper countersink KSJ 45° Ø 16x03 mm shank Ø 6 mm Edge processing. Carbide burrs with EDGE teeth have been specially developed for defined edge processing. The special design allows the burr to be guided precisely along edges without damaging the workpiece. Precise edge shapes can be created in just one work step. Among other things, edge rounding is required as a safety measure for corrosion protection in accordance with: ISO 129443, ISO 85013, SOLAS XII/6.3 (Ref. T4/3.01 MSC.1/Circ.1198) . Taper countersunk burr for creating precisely defined chamfers. Suitable for chamfering defined 45° chamfer angles. The EDGE Cutting System consists of burrs with EDGE teeth and a special guide sleeve. The system can be used on any commercially available drive to achieve optimum guidance during light deburring work. The chamfer width produced with the EDGE Cutting System (ECS) is 1.2 mm (+/- 0.2 mm).

Product information

HAHN+KOLB Catalogue

Certificates/ Documents

Brand	PFERD
EAN	4007220097984
Manufacturer Part Number	21115467
Description Short	PFERD carbide burr EDGE taper countersink KSJ 45 degrees diameter 16x03 mm, 6 mm
Gross Weight	0.079 kg
