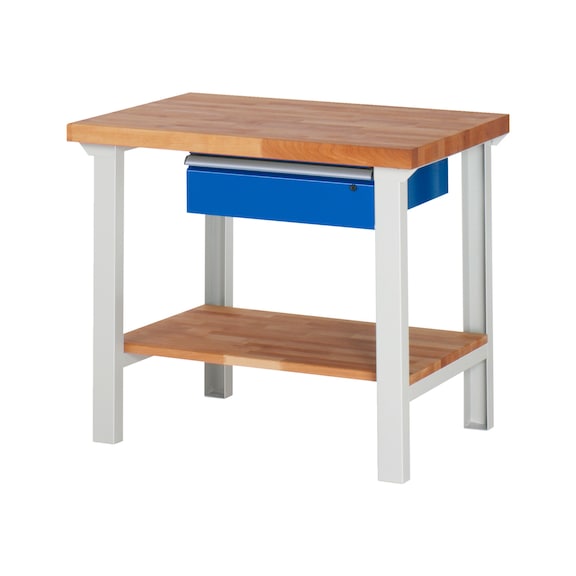

RAU Workbench 1000x700x840mm 1xpartial drawer runner Series 7001A7

Brand: RAU

Description Short: RAU Workbench 1000x700x840mm 1xpartial drawer runner Series 7001A7

Material: Steel

Surface: Powder-coated

Art.-no. 95003423

Manufacturer article no. 03-7001A7-107B4S.11

Individual prices for customers after login
RAU Workbench 1000x700x840mm 1xpartial drawer runner Series 7001A7

Art.-no. 95003423

Quantity
Price per
Piece

You need more information or have not found your desired product?

Solid beech worktop, 40 mm thick.beech latch with finger-joint gluing. Front edge with radius, other edges chamfered. Surface protection with environmentally friendly lacquer oil. The classic worktop: resilient, pressure-resistant, durable, natural, robust, beautiful, wear-resistant, reusable. 100% from our own production (from tree to worktop) with raw material from sustainable and regional forestry.System substructure, W1000 x D650 x H800 mm.4-leg frame with two pairs of frame legs made of C-profile steel (70x50x2 mm) incl. depth bracing (top and bottom). Frame legs with wide support surface (120 mm) at the top and with floor anchoring option at the bottom using perforated foot plates.1 underbench drawer on the right, W520 x D650 x H175 mm, with the following division:1 x drawer size L 1xH150 mm.Drawer size L (inside W490 x D560 mm, load capacity 50 kg). Roller bearing mounted pull-outs (pull-out 90 %). The usable height of the drawer corresponds to the front height minus 15 mm. Full-length ErgoScript® handle strip: sheet steel base with aluminum-colored overlay and integrated transparent cover (incl. labeling strips).Central locking (pin cylinder lock with 2 keys).Solid beech bottom shelf (depth 545 mm, thickness 25 mm, shelf height 540 mm).

Product information

Certificates/ Documents

 |

 |

Brand

RAU

Manufacturer Part Number

03-7001A7-107B4S.11

Description Short

RAU Workbench 1000x700x840mm 1xpartial drawer runner Series 7001A7

Width

1000 mm

Plate thickness

40 mm

Material of worktop

Solid beech

Number of drawers

1 PCS

Load-carrying capacity per drawer

50 kg

Height

840 mm

Working height

840 mm

Adjustable in height

No

Colour of front

Gentian blue RAL 5010

Cabinet colour

Light grey RAL 7035

Frame colour

Light grey RAL 7035

Material

Steel

Surface

Powder-coated

Plate length

1000 mm

Plate depth

700 mm

Depth

700 mm

Drawer front height

1 x 150 mm

Drawer width (inner dimension)

490 mm

Drawer depth (inner dimension)

560 mm

Load-carrying capacity

750 kg

Pullout type

Single extension slide

Drawer slide

0.9

Lock type

Cylinder lock

Central locking

Yes

Made in

Germany

Gross Weight

61.000 kg
