RAU

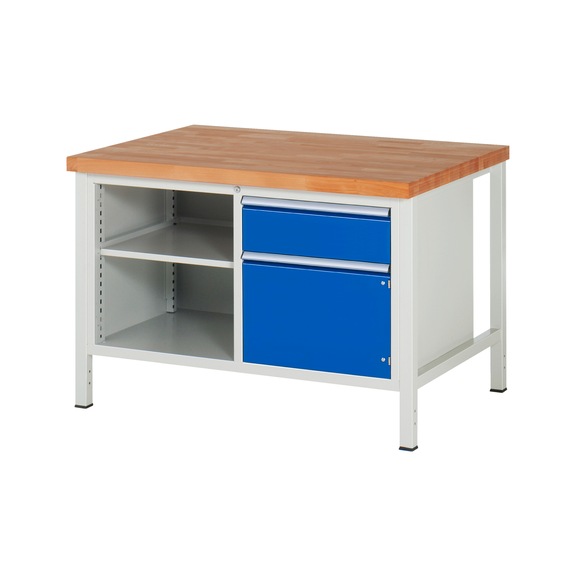

RAU Workbench 1250x900x840mm 1xpartial drawer extension 1xdoor Series 8461A2

Brand: RAU

Description Short: RAU Workbench 1250x900x840mm 1xpartial drawer extension 1xdoor Series 8461A2

Material: Steel

Surface: Powder-coated

Art.-no. 95003881

Manufacturer article no. 03-8461A2-129B4S.11

Individual prices for customers after login
RAU Workbench 1250x900x840mm 1xpartial drawer extension 1xdoor Series 8461A2

Art.-no. 95003881

Quantity
Price per
Piece

You need more information or have not found your desired product?

Solid beech worktop, 40 mm thick.beech latch with finger-joint gluing. Front edge with radius, other edges beveled. Surface protection with environmentally friendly lacquer oil. The classic worktop: resilient, pressure-resistant, durable, natural, robust, beautiful, wear-resistant, reusable. 100% from our own production (from tree to worktop) with raw material from sustainable and regional forestry.System substructure, W1235 x D850 x H800 mm.4-leg welded frame with two pairs of frame legs made of profile steel tube (45x45x2 mm) incl. depth bracing (top and bottom). Frame legs at the bottom with end element incl. anti-slip knob for safe standing. The frame feet are prepared for mounting/retrofitting a height adjuster and/or a set of castors.1 double base container, W1145 x D650 x H620 mm; with the following division:left: 1 x shelf L (height-adjustable)right: 1 x drawer size L 1xH180 mm, 1 x hinged door size L 1xH360 mm.Drawer size L (inside W490 x D560 mm, load capacity 100 kg). The usable height of the drawer corresponds to the front height minus 15 mm. Roller bearing-mounted partial extension runners (90 % extension) with self-closing mechanism and return stop.Hinged doors with self-retracting spring hinges, opening width 180 degrees.Full-length ErgoScript® handle strip: sheet steel base with aluminum-colored overlay and integrated transparent cover (incl. label strips).Central locking (pin cylinder lock with 2 keys).

Product information

Certificates/ Documents

 |

 |

Brand

RAU

Manufacturer Part Number

03-8461A2-129B4S.11

Description Short

RAU Workbench 1250x900x840mm 1xpartial drawer extension 1xdoor Series 8461A2

Width

1250 mm

Plate thickness

40 mm

Material of worktop

Solid beech

Number of drawers

1 PCS

Load-carrying capacity per drawer

100 kg

Height

840 mm

Working height

840 mm

Adjustable in height

No

Colour of front

Gentian blue RAL 5010

Cabinet colour

Light grey RAL 7035

Frame colour

Light grey RAL 7035

Material

Steel

Surface

Powder-coated

Plate length

1250 mm

Plate depth

900 mm

Depth

900 mm

Drawer front height

1 x 180 mm

Drawer width (inner dimension)

490 mm

Drawer depth (inner dimension)

560 mm

Load-carrying capacity

1250 kg

Pullout type

Single extension slide

Drawer slide

0.9

Lock type

Cylinder lock

Central locking

Yes

Made in

Germany

Gross Weight

122.000 kg
