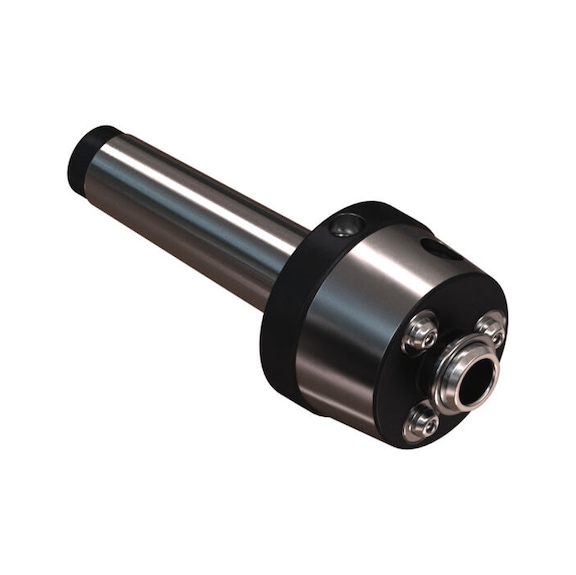

RÖHM Constant CoAE end-face driver base body, KK5

Base body with Morse taper and hydraulic pressure compensation. Clamping diameter 8–80 mm. Workpiece weight max. 100 kg. Technical features: Guide value for total permissible axial load on the 3 support pistons: 20,000 N. Applications: For efficient turning and milling of workpieces along their entire length without re-clamping, with the highest accuracy. Advantages: Constant clamping force through hydraulic pressure compensation, even with uneven end faces of the workpiece. Stable and consistent workpiece length stop at the end face thanks to a spring-loaded centring tip. Maximum run-out deviation of 0.015 mm for maximum precision. Maximum flexibility through universal interchangeability of the driver disc and centring tip. Further information: CoAE end-face driver base body, KK5
