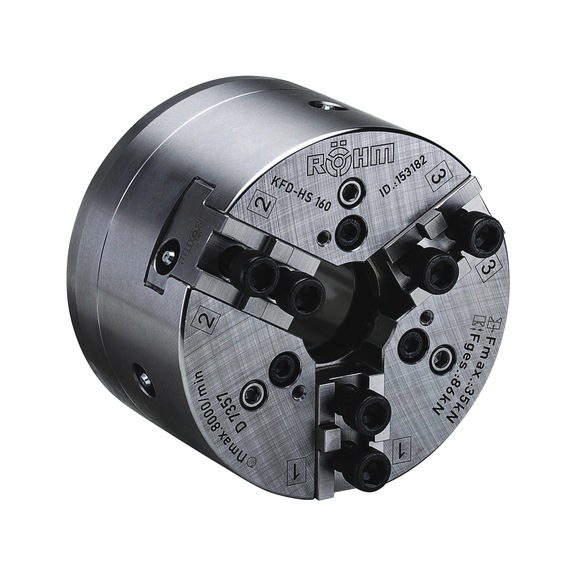

RÖHM KFD-HS 200 power chuck, 3-jaw, 90-degree pointed teeth, ISO 702-I

Brief description: Power chucks available with cylindrical centring mount or short taper mount. 3-jaw version with 90-degree pointed teeth or cross-offset. 2-jaw version with 90-degree pointed teeth. Technical features: Universal design of the piston connection (the piston does not protrude into the spindle bore even when retracted); long jaw guide; clamping inserts can be used for bar machining (special version); included in the scope of delivery: chuck, chuck and jaw fixing screws, assembly spanner, lead screws (without extension jaws) Applications: Premium power chuck with through-hole for maximum speeds and optimised centrifugal force behaviour. Advantages: Low centrifugal force losses and maximum speeds thanks to a special wedge-hook system with ring piston; Above-average through-hole diameter for a wide range of workpieces; Maximum accuracy due to rigid chuck construction; Quick changeover to a different spindle mount by simply replacing the centring flange Further information: Through-hole power chuck KFD-HS, size 200, KK 6, 3-jaw, 90-degree pointed teeth, short taper mount ISO 702-I (DIN 55026/55021)
