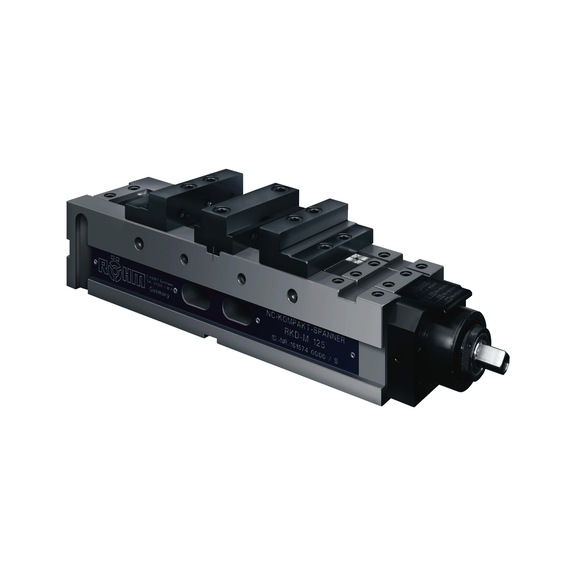

RÖHM NC Compact Double Clamp RKD-M, jaw width 92

Brief description: Mechanical clamping system without a force multiplier, manually operated. With a single-sided drive spindle. Technical features: Vice with two movable clamping jaws and a fixed centre jaw; steel base body and all guides hardened and ground on all sides; mounting possible only with clamping claws (direct mounting on request); Constant clamping force during every clamping operation and high repeatability when using a torque wrench; RKD-M = RÖHM, Compact, Double Clamp, Manual Applications: For flexible clamping tasks on machining centres and other manufacturing systems. Three clamping functions: double clamping – centric clamping – single clamping. Advantages: Long clamping stroke (50 mm per jaw); the clamping thread of the spindle is protected from dirt and swarf in any position of the base jaws; with grease nipples fitted on both sides, all wear-prone guides and the spindle thread can be lubricated quickly and easily; Can be clamped horizontally, vertically and laterally Further information: NC Compact Double Clamp RKD-M, jaw width 92, with reversible stepped jaws and centre jaw
