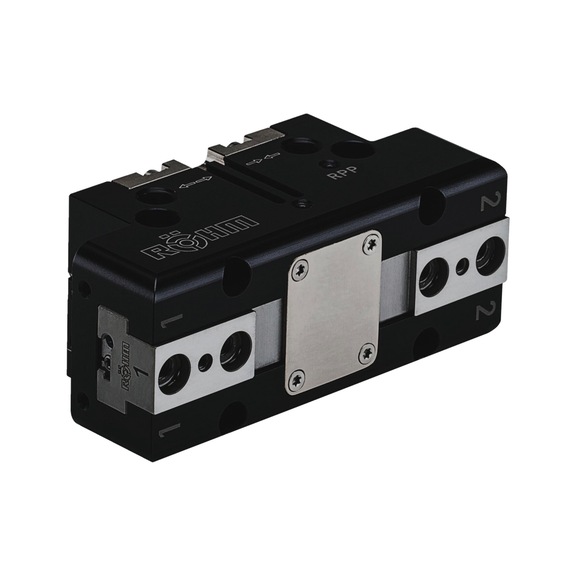

RÖHM RPP-100-1/GA parallel gripper, long jaw stroke, gripping force safety device, external clamping

Brief description: Available in sizes 50 to 380, each with two stroke variants. Optionally available with gripping force safety device and/or dust cover. Gripper fingers are secured using centring sleeves (included in the scope of delivery). Technical features: Centric clamping in a compact design made from high-strength, hard-coated aluminium alloy; All functional parts made from hardened steel for maximum service life; wedge hook principle with pneumatic actuation (hydraulic version available on request); position detection possible via inductive or magnetic sensors; optionally available with FKM seals for higher temperatures up to 150 °C (on request); Integrated air seal connection to prevent contamination. Applications: Universal gripping of round and square workpieces using two parallel gripper fingers for handling with robots or gantries. Advantages: High gripping force combined with low weight and a compact design; High torque support for the use of long gripper fingers thanks to extended jaw guidance; Maximum flexibility thanks to versatile connection and mounting options; Long service life and high reliability thanks to specially ground base jaws in a proven T-slot guide Further information: RPP-100-1/GA, 2-jaw parallel gripper, pneumatic, long jaw stroke, standard gripping force, gripping force lock for external clamping
