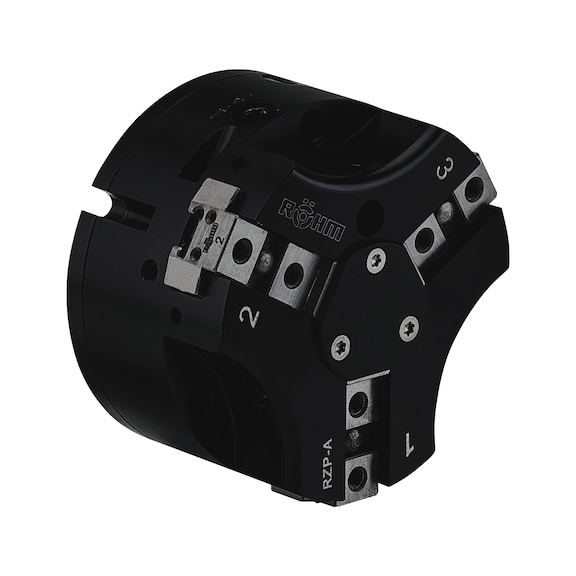

RÖHM RZP-A 160/3-2 GA Centric gripper, high gripping force, gripping force safety device for external clamping

RZP-A 160/3-2 GA, centric gripper, high gripping force, gripping force safety device for external clamping. Brief description: Available in sizes 64 to 160, each with two stroke variants. Optionally available with gripping force safety device and/or dust cover. Gripper fingers secured via centring sleeves (included in the scope of delivery). Technical features: Centric clamping in a compact design made from high-strength, hard-coated aluminium alloy; all functional parts made from hardened steel for maximum service life; wedge hook principle with pneumatic actuation; position detection possible via inductive and magnetic sensors; optionally available with FKM seals for higher temperatures up to 150 °C (on request); Integrated purge air connection to prevent contamination. Applications: Universal gripping of round and cylindrical workpieces using three centric gripper fingers for handling with robots or gantries. Advantages: High gripping force combined with low weight and a compact design; maximum flexibility thanks to versatile connection and mounting options; Long service life and high reliability thanks to specially ground base jaws in a proven T-slot guide Further information: RZP-A 160/3-2 GA, 3-jaw centric gripper, pneumatic, standard jaw stroke, high gripping force, gripping force lock for external clamping
