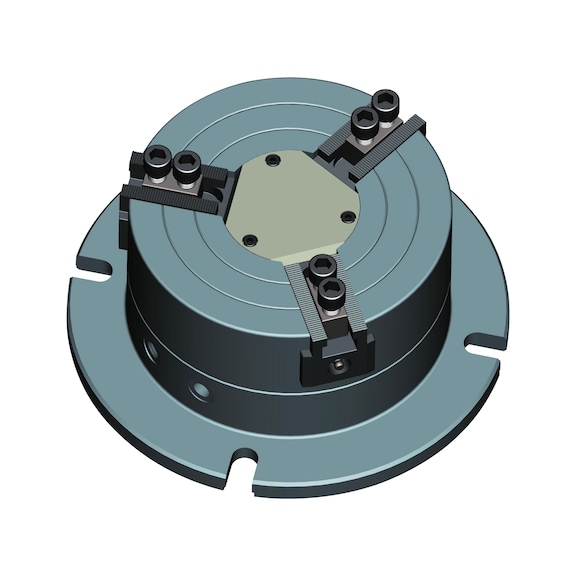

RÖHM Stationary vice SSP, size 315, pneumatic 3-jaw

Brief description: Clamping system comprising a 3-jaw chuck with integrated pneumatic cylinder. 90-degree pointed teeth. Technical features: Wedge-hook system with pneumatic actuation; clamping force adjustment via pressure variation; Note: Hydraulic actuation available on request; SSP = Stationary, Clamping Chuck, Pneumatic Applications: For stationary, centric clamping of workpieces on milling machines or machining centres. Advantages: Compact design; universal application through the use of different clamping jaws; Centric clamping of round and square workpieces; high repeatability due to robust chuck construction and consistent clamping force at the same pressure; optional air seal connection to prevent contamination Further information: Stationary clamping vice SSP, size 315, pneumatic 3-jaw version, non-through, 90-degree tapered teeth
