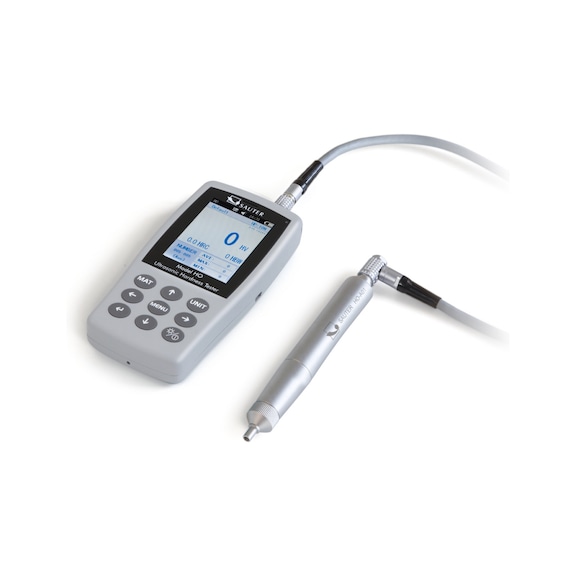

SAUTER UCI hardness tester HO 5K Hardness scale HV 5 Hardness measurement 50 N

Application: This ultrasonic hardness tester is ideal for mobile hardness tests where great importance is attached to fast and precise results; Principle: The SAUTER HO measures by means of a vibrating rod that vibrates at ultrasonic frequency and is pressed onto the sample with a defined test force. A Vickers indenter is located at the lower end. Its resonance frequency increases as soon as it is brought into contact with the sample when the indentation is created. The resulting resonance frequency shift is assigned to the corresponding Vickers hardness by adjusting the device accordingly; examples: The SAUTER HO ultrasonic hardness testing system is primarily used for measuring small forgings, castings, spot welds, punched parts, casting tools, ball bearings and flanks of gears, as well as for measuring after heat or heat influence; advantages over Rockwell and Brinell: virtually non-destructive testing due to smaller test force and therefore only microscopically small indentation craters; advantages over Vickers: the demanding optical measurement is no longer necessary. This means that measurements can be taken directly on site, e.g. on a fixed workpiece; advantages over Leeb: The high demands on the weight of the test object are largely eliminated; standards: The device fulfils these technical standards: DIN 50159-1; ASTM-A1038-2005; JB/T9377-2013; Measurement data memory saves up to 1000 measurement value groups of 20 individual values each; Mini statistics function: display of the measurement result, the number of measurements, the maximum and minimum value, as well as the average value and the standard deviation; Calibration: the device can be set to both standardised hardness reference plates and up to 20 reference calibration values. This makes it possible to quickly measure different materials without having to readjust the device to the individual materials; Scope of delivery: hardness comparison block (approx. 61 HRC), USB cable, display unit, UCI sensor unit, transport case, software for transferring the stored data to the PC, protective cover (turquoise), other accessories. Further information: EAN number: 4045761200661 Manufacturer's article number: HO 5K.
