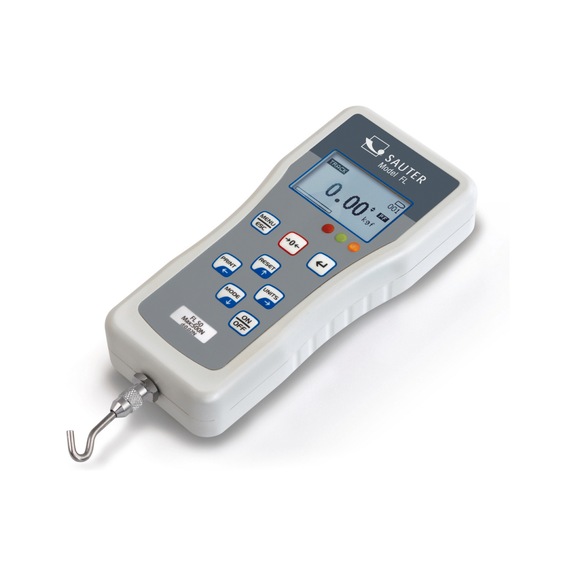

SAUTER digital force gauge FL 100 Measuring range 100 N Reading 0.05 N

Name: SAUTER digital force gauge FL 100 Measuring range 100 N Reading 0.05 N
Brand: SAUTER
SKU: 95220250

Brand: SAUTER

Description Short: SAUTER digital force gauge FL 100 Measuring range 100 N Reading 0.05 N

Art.-no. 95220250

Manufacturer article no. FL 100

EAN 4045761138872

All versions

Similar products

Individual prices for customers after login

SAUTER digital force gauge FL 100 Measuring range 100 N Reading 0.05 N

Art.-no. 95220250

Quantity

Price per

Piece

You need more information or have not found your desired product?

Reversible display with backlighting; Peak hold function for recording the peak value or track function for continuous measurement display; Metal housing for permanent use in robust environmental conditions; Can be mounted on all SAUTER test stands up to 5 kN; Capacity display: A rising light band indicates the available measuring range; Measuring with tolerance range (limit value function): Upper and lower limit value adjustable, in tension and compression direction. The measuring process is supported by an optical signal; Internal data memory for up to 500 measured values; Continuous analogue output: Linear voltage signal depending on the load (-2 to +2 V); Data interface USB, standard; Standard attachments: as shown; Selectable units N, kN, kgf, lbf; Supplied in a robust carrying case. Further information: EAN number: 4045761138872 Manufacturer's article number: FL 100.

Product information

HAHN+KOLB Catalogue

Certificates/ Documents

Brand	SAUTER
EAN	4045761138872
Manufacturer Part Number	FL 100
Description Short	SAUTER digital force gauge FL 100 Measuring range 100 N Reading 0.05 N
Battery included in delivery	Yes
Rechargeable battery included in scope of delivery	Yes
Number of rechargeable batteries/batteries	1 PCS
Type of rechargeable battery/battery	NiMH
Battery voltage	4.8 V
Rechargeable battery/battery capacity	0.75 Ah
Nominal energy	3.6 Wh
Gross Weight	1.400 kg
