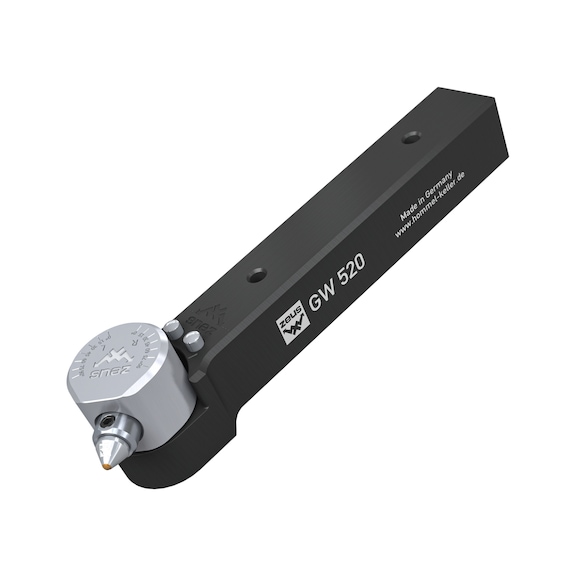

Burnishing tool SET 520
For detailed information, other images and documents, please select individual articles from the following table.
Burnishing tool SET 520
The flexible burnishing tool for almost all geometries _z
You need more information or have not found your desired product?
Products
You need more information or have not found your desired product?
Prices for customers after login
Application
For burnishing turned parts
Execution
- Adjustable tool head - suitable for universal use
Advantage
- High flexibility thanks to +-90° adjustment range - flat, tapered, convex and concave geometries can be produced
- Burnishing right up to the shoulder possible
- Long diamond service life thanks to eight-position indexing
Notes
Vc= 200m/min
f= 0.2 mm/rev
Workpiece stock allowance: 0.01mm = Rz10 0.02mm = Rz20
Use cutting fluid
Delivery
Includes 1/2"x1/2" and 5/8"x5/8" shank adapters; for shank 10, 3/4"x3/4"
Select RAL-colour code
!! NOTE: On-screen visualisation of the colour differs from real colour shade!!
