System workstations

THE ERGONOMIC WORKPLACES FOR ASSEMBLY

System workstations allow for ergonomic and flexible workplace design. The workstations are electrically height-adjustable and can be easily and quickly configured to meet your individual requirements and the needs of your employees by means of a modular plug-in system. Choose the right accessories from numerous equipment variants and increase the efficiency of your work processes.

LEARN MORE ABOUT THE SYSTEM WORKSTATIONS FROM HAHN+KOLB

1521-B1:/Diverses/Fokus_BE/GIF_Systemarbeitsplatz_Neu.gif
  • We will explain to you how you can create significant added value for your company with an ergonomic workstation.

  • Discover the equipment variants from drawer cabinets, perforated sheet metal and shelves to swivel arms for monitors and laptops.

  • Adjust the height-adjustable workstation quickly and easily.

1521-B1:/Icons/CTA_learn-more.jpg

DISCOVER OUR SYSTEM WORKSTATION PRODUCTS


INCREASE YOUR PRODUCTIVITY THROUGH INDIVIDUAL WORKSTATIONS

With our system workstations we offer you maximum individuality, ergonomics and flexibility.

In an individually furnished and functioning work environment, the motivation of your employees and the efficiency for your company increases: An optimal order and organization of materials and tools at the workplace ensures efficient work processes and thus short reaction times.

Each person has individual characteristics and abilities, which is why it is important to adapt the work to the person. Ergonomically designed workplaces not only promote the health and well-being of employees. They also have a significant added value for your company.


The advantages of an ergonomic workplace

  • The health and well-being of your employees is increased.
  • Performance and work results improve, the error rate is reduced.
  • Work-related illnesses such as back, neck or shoulder pain are reduced.
  • Efficient, ergonomic workplaces have a positive effect on the image of your company.
1521-B1:/Diverses/Fokus_BE/Systemarbeitsplatz_Stand_600.jpg

ADAPT YOUR SYSTEM WORKSTATION INDIVIDUALLY

The workstations consist of a base frame and worktop and are available in various dimensions and load weights. Depending on requirements and employees, different equipment options and accessories are available. The modular system allows you to design and adapt the workstation flexibly and individually.

Combine several system workstations with each other and thus design your individual workstation equipment. Over-corner solutions are also possible without problems.

1521-B1:/Diverses/Fokus_BE/_MG_0548_reduziert.jpg

Adjust the height of your workstation easily

To ensure that the working environment adapts to the employee, the height of the workstations can be adjusted electrically via a control element. The adjustment of the system workstation only runs while you hold down the up or down button on the control element. When the button is released, the movement stops immediately. The control system has a pre-programmed automatic acceleration and deceleration system. This dampens the movement of the table top during start and stop. You can store up to four defined worktop heights using the memory keys.

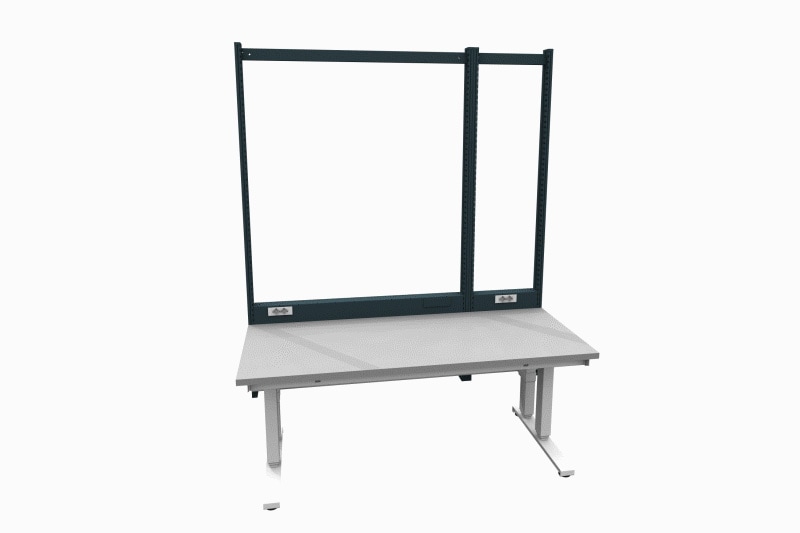

The work table as a stable basis for an ergonomic workplace

  • The table underframes are made of a stable sheet steel construction and include an integrated cable duct including a punched-out area under the top for clean and user-friendly cable management.
  • Standardized system widths of 1,200, 1,600 and 2,000 mm with a maximum load up to 400 kg, depth 700 or 800 mm
  • Infinitely variable height adjustment between 690 and 1,200 mm by key operation or Bluetooth device through four powerful lifting columns, max. lifting speed 38 mm/s
  • Very stable assembly unit due to additional cross strut and energy shield suspended below
  • Assembly unit infinitely adjustable in the horizontal position on the worktable
1521-B1:/Diverses/Fokus_BE/Tisch-Aufbaueinheit.jpg

YOUR EQUIPMENT VARIANTS - MANY OPTIONS, ONE GOAL

Flexibility knows no limits - combine our system workstations with our flexible CLIP-O-FLEX suspension system. The holding rails are fixed to the perforated plate with cage nuts. Afterwards, you can choose to individually hang in shelves with our hard foam inserts or our storage boxes. Thus you always have your tools at hand.

Create your system workstation individually according to your needs and ergonomic requirements!

1521-B1:/Diverses/Fokus_BE/_MG_0562_reduziert.jpg

Drawer cabinets

The drawer cabinets are mounted as a hanging block under the worktop. They have two drawers and are made in lightweight construction from the automotive sector, so that no unnecessary weight capacity is wasted. The drawer fronts are anodized aluminum and shine in a high-quality design. The drawer heights are 2 x 90 mm.

1521-B1:/Diverses/Fokus_BE/_MG_0583_reduziert.jpg

Perforated plate

The perforated plate is used to hang various accessories and can be used for visual separation. Depending on the height (400 mm or 800 mm) it is fastened by means of 4 or 6 holders. For all variants the maximum load is 50 kg and the grid dimension is 38 mm x 38 mm x 10 mm.

1521-B1:/Diverses/Fokus_BE/_MG_0528_reduziert.jpg

Shelves

The shelves are used for the permanent storage of Euro boxes. They are hooked into the body unit. For optimum ergonomics at the workplace, they can be inclined continuously up to 25° and their depth can be adjusted. Thus, different gripping widths are also taken into account. For all variants the maximum load capacity is 50 kg.

1521-B1:/Diverses/Fokus_BE/_MG_0578_reduziert.jpg

Suspension bar

The suspension bar is used for flexible suspension of elements on the surface-mounted unit. It is inclined at an angle of 25°. For all variants the maximum load is 25 kg.

MORE EQUIPMENT OPTIONS

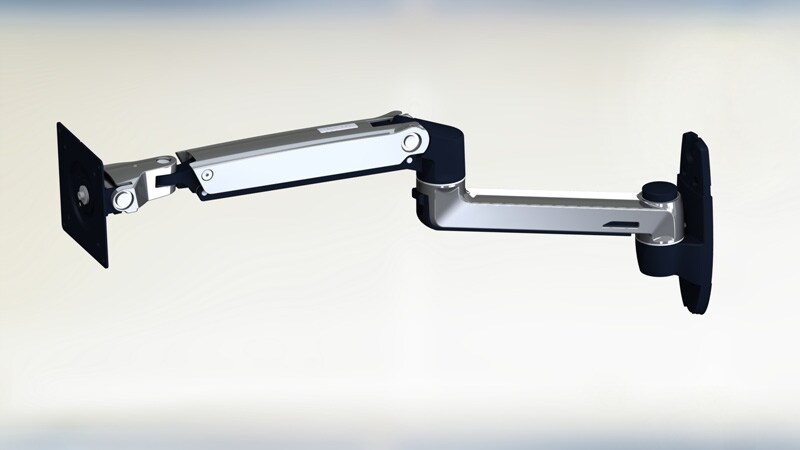

Discover further practical elements for your ergonomic system workstation, such as the swivel arms for monitor, laptop and keyboard - including a retractable mouse tray.

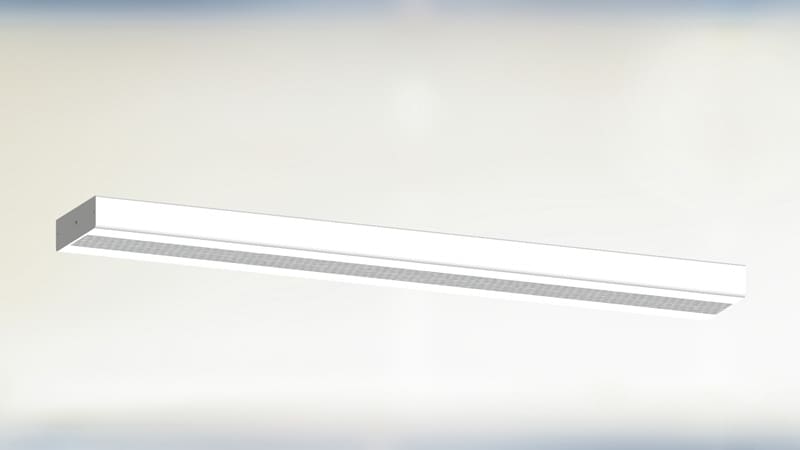

If you want to use a trolley with equipment, mount the extension arm unit on the assembly unit and attach the equipment rail there. The LED system light is also mounted here. It provides ergonomic lighting of the system workstation with 5000 Kelvin and has a dimming function. Microprismatic screen and diffuser foil provide glare control. Due to premium LED's of the latest generation it has a high energy efficiency.

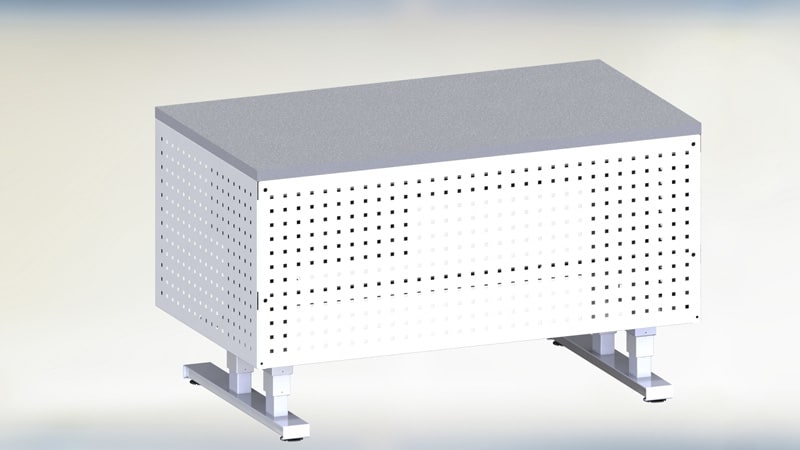

In order to avoid the danger of crushing when workplaces are placed next to each other, use clamping protection.

All products for the equipment of your flexible workstation can be found in the category accessories system workstation.

1521-B1:/Icons/CTA_Go-to-products.jpg
1521-B1:/Diverses/Fokus_BE/Monitorhalter.jpg
1521-B1:/Diverses/Fokus_BE/Auslegereinheit.jpg
1521-B1:/Diverses/Fokus_BE/LED-Unterbauleuchte.jpg
1521-B1:/Diverses/Fokus_BE/Klemmschutz.jpg
