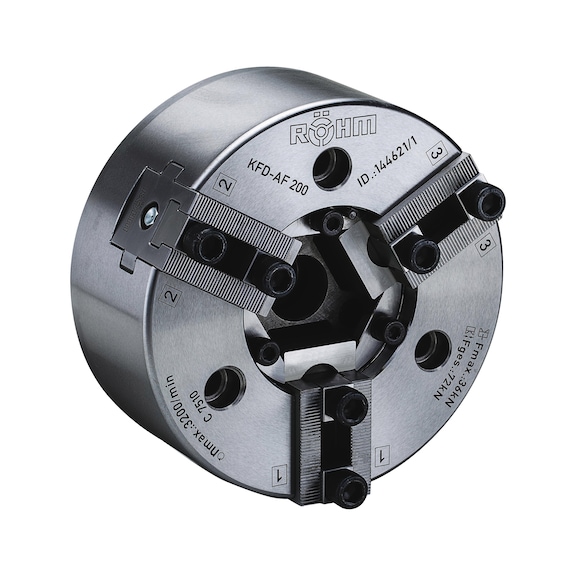

RÖHM Power-operated compensating chuck KFD-AF, size 315, 3-jaw, pointed teeth, 90

Power-operated compensating chuck KFD-AF, size 315, 3-jaw, 90-degree pointed teeth. Brief description: Compensating power chuck with cylindrical centring mount or short taper mount. 3-jaw design with 90-degree pointed teeth. Technical features: Proven wedge-hook system; compensation is achieved via the radially floating clamping piston. Piston lubrication for centric clamping; base jaw lubrication; Note: When ordering a power chuck, please specify the centring insert and mounting flange; Included in the scope of delivery: chuck, chuck and jaw fixing screws, slotted nuts (without extension jaws) Areas of application: Centric or compensating chucks, in which the workpiece is centred either via a centre point or via the jaws. Advantages: Flexible use thanks to simple conversion to centric clamping using centring inserts; low-maintenance due to special sealing against dirt and coolant Further information: Power-operated compensating chuck KFD-AF, size 315, 3-jaw, with 90-degree pointed-tooth centring insert and interchangeable chuck mounting
